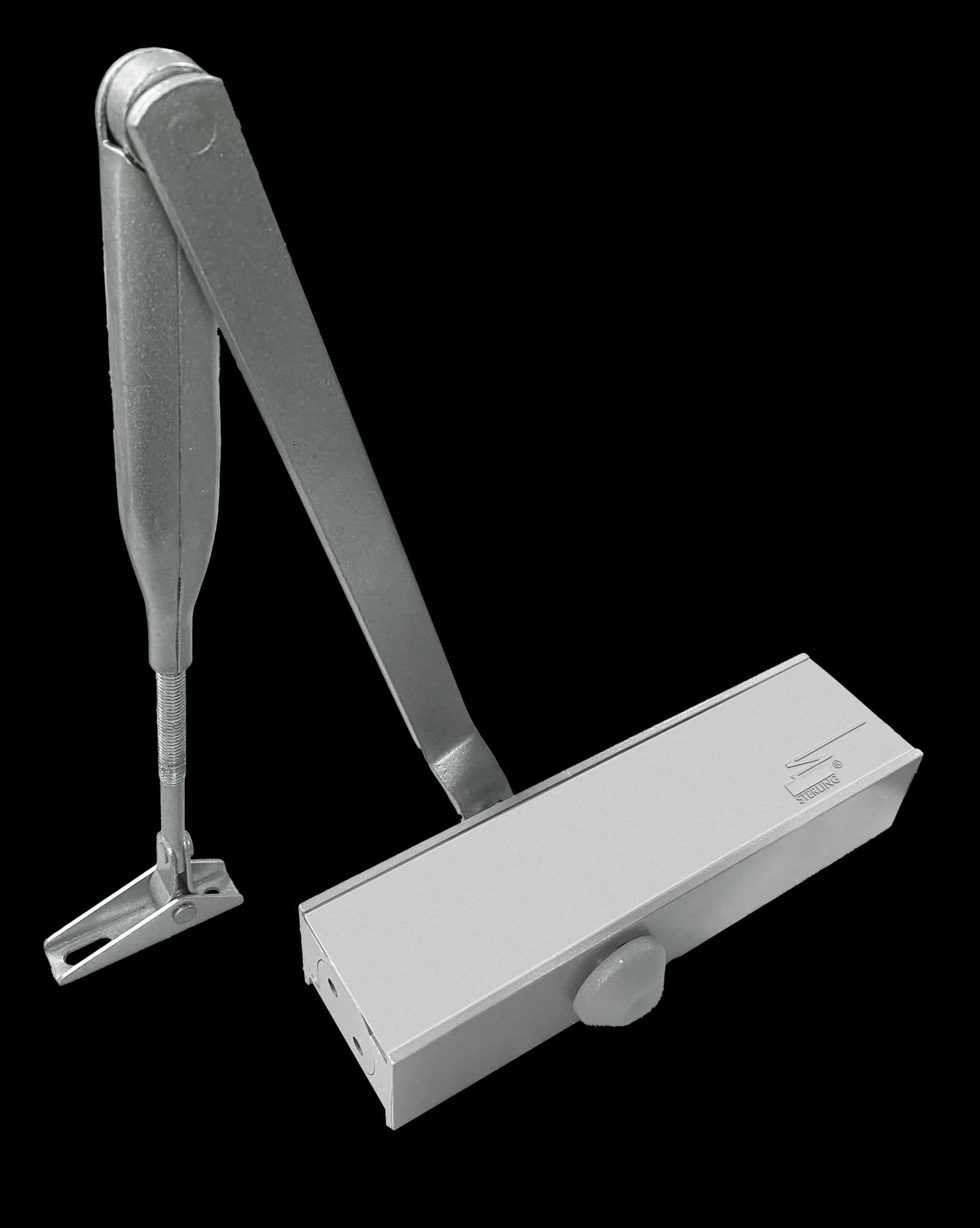

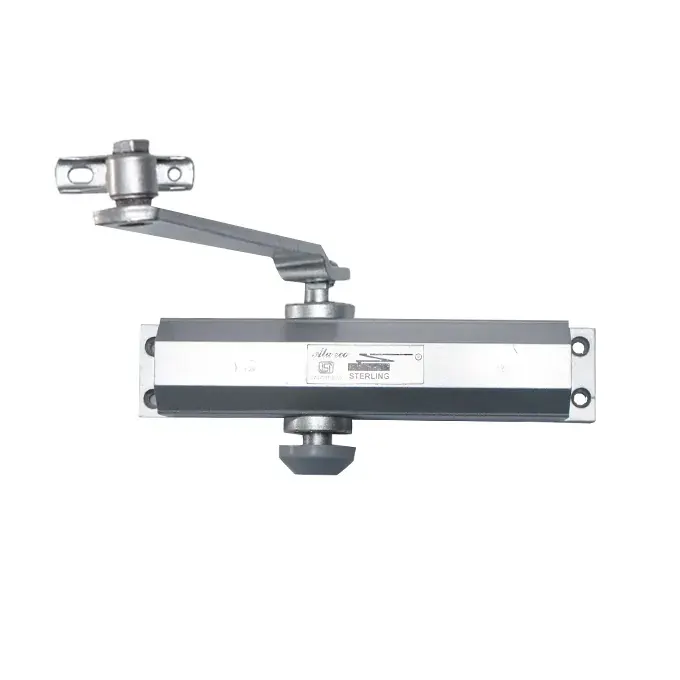

Surface-mounted door closer
Sterling DC 1500
Doors up to 45 kg and 900 mm wide, EN 1-2
Sterling door closers.

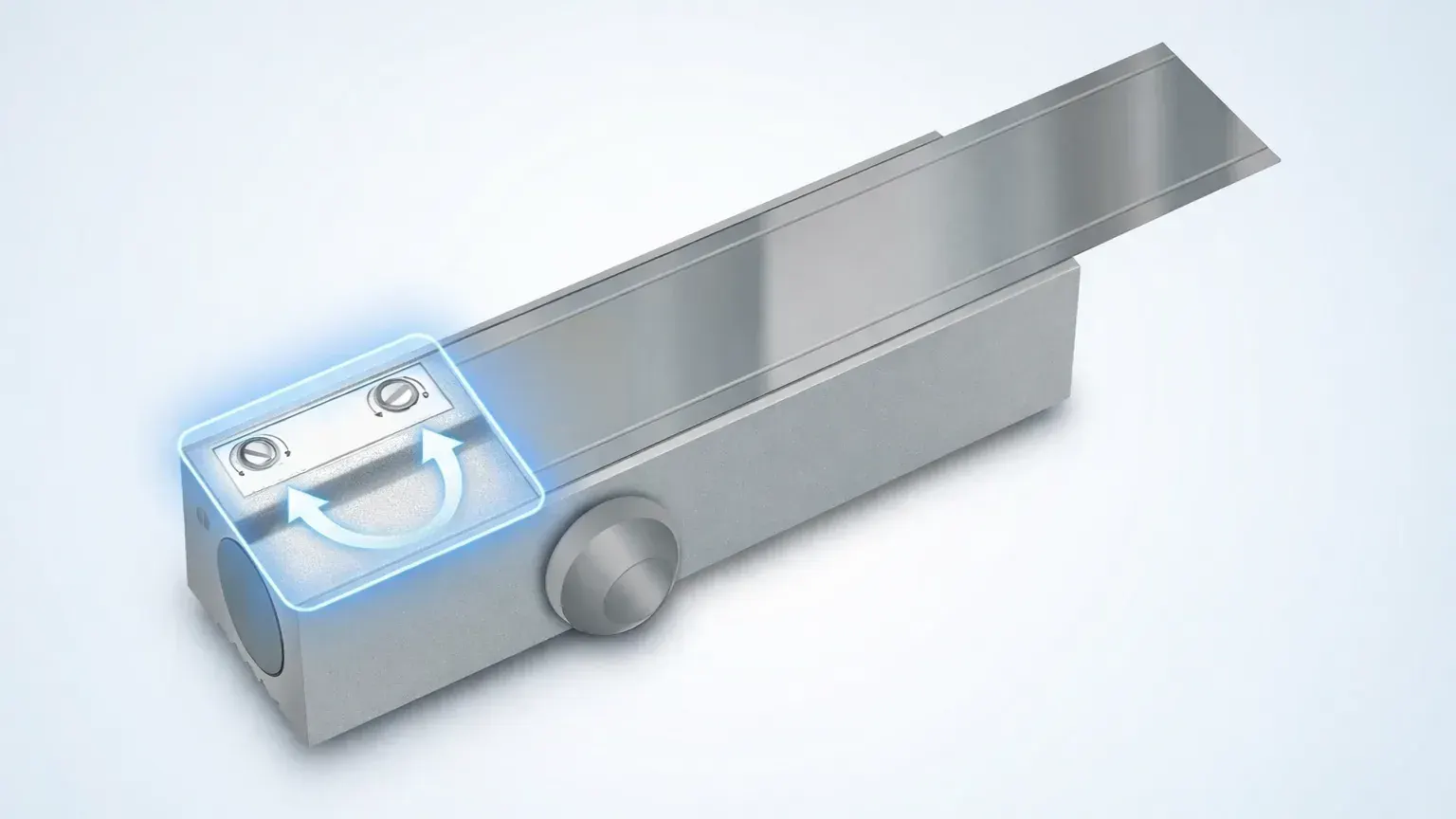

Two speeds, one arc.
Rack and pinion door closers, and floor springs, all with two-speed control: the closing speed governs the swing, the latching speed the last part of travel. Manufacturing door closers in India since 1989.
Sterling DC 2900
Surface-mounted door closer, EN 4-5, for doors up to 100 kg and 1100 mm wide. The plan shows a leaf of 1100 mm closing at two speeds, with the DC 2900 body on it at the same scale.
Product families

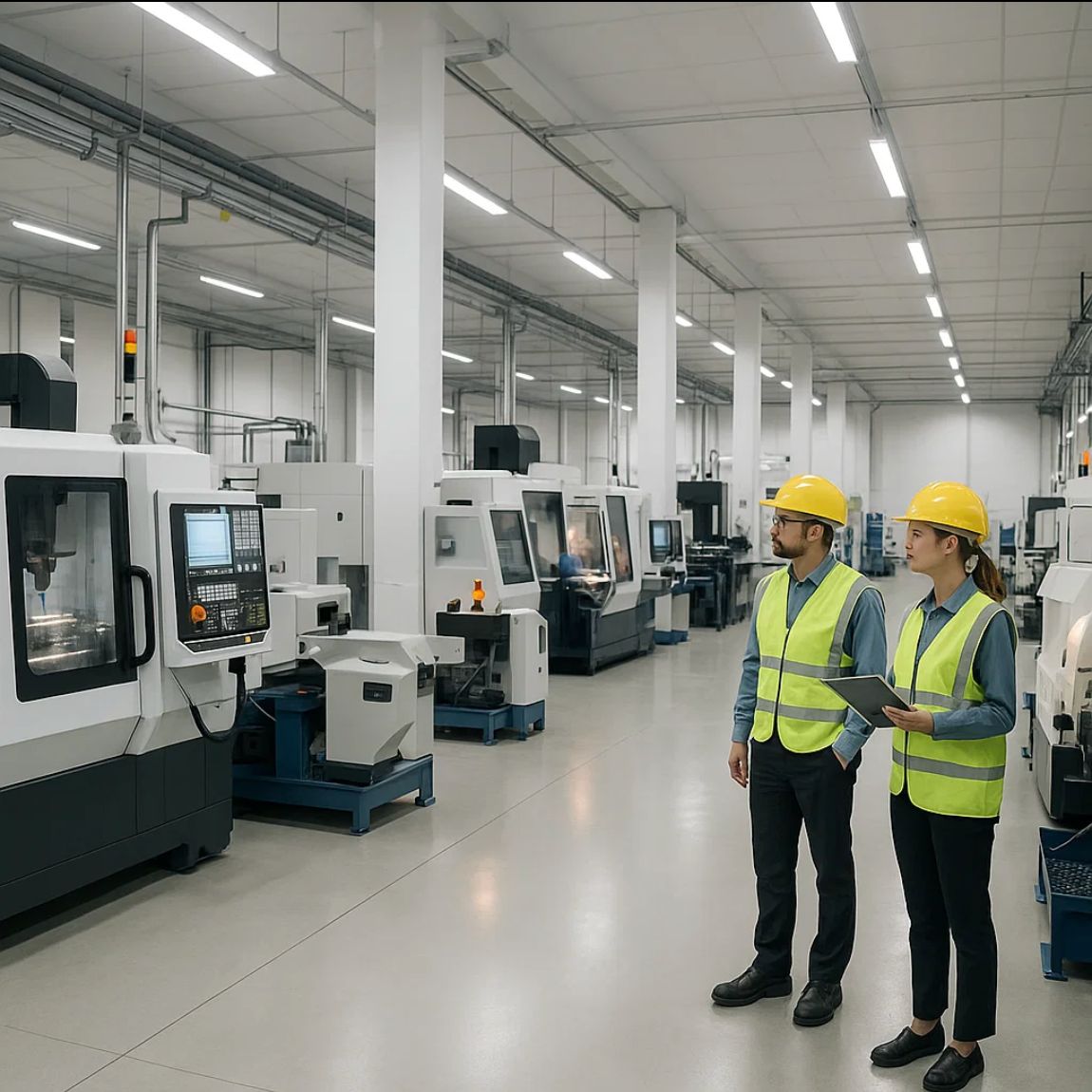

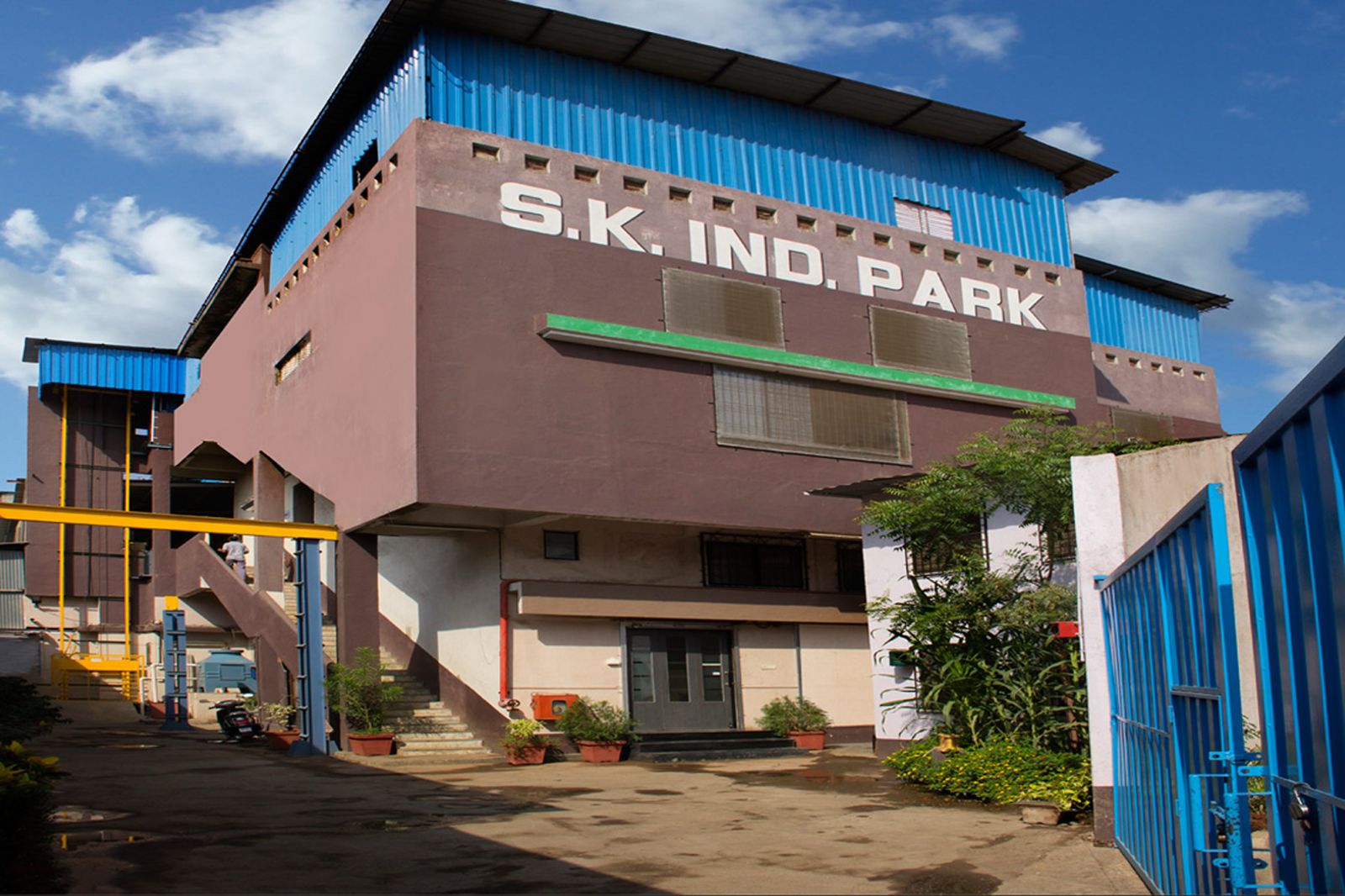

Made in our own
plant in Vasai.
Sterling door closers and floor springs are made at our works in Vasai (East), Maharashtra. Door closer housings are extruded aluminium alloy, precision machined, and painted or powder coated in-house. Each closer uses a rack and pinion mechanism with two-speed control, and the surface-mounted models use universal mounting for left and right hand doors.
Studio photography, October 2026.

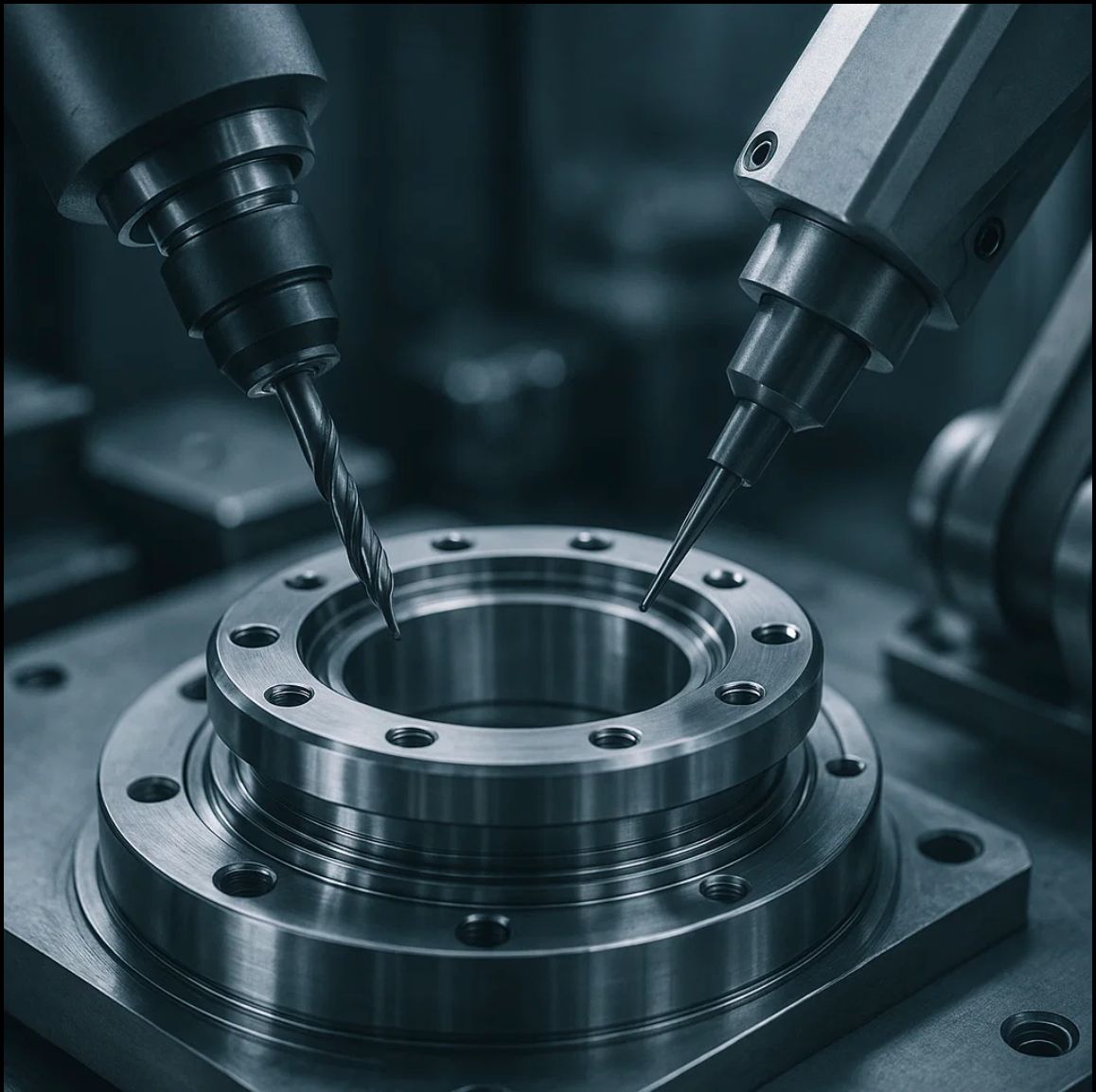

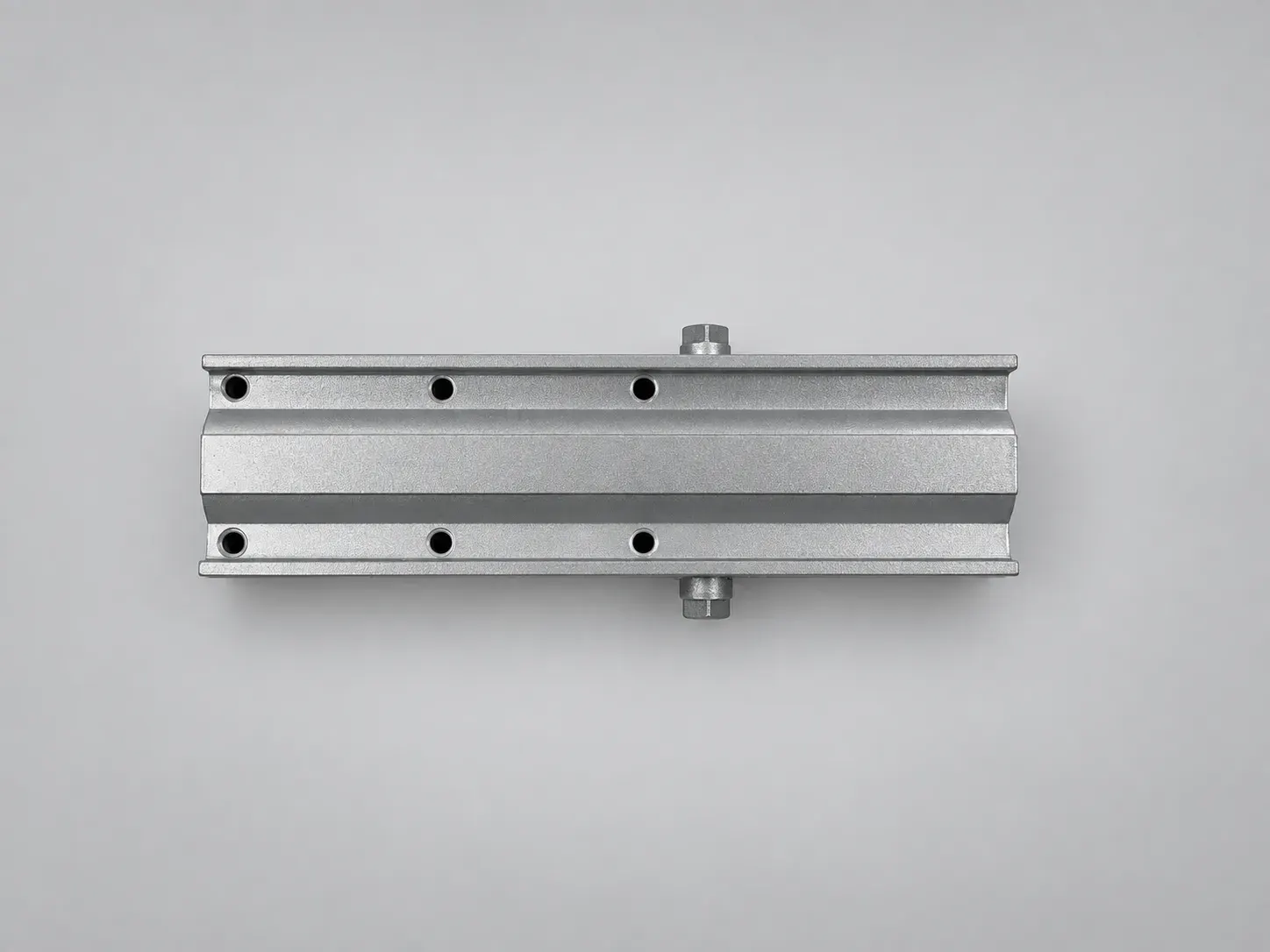

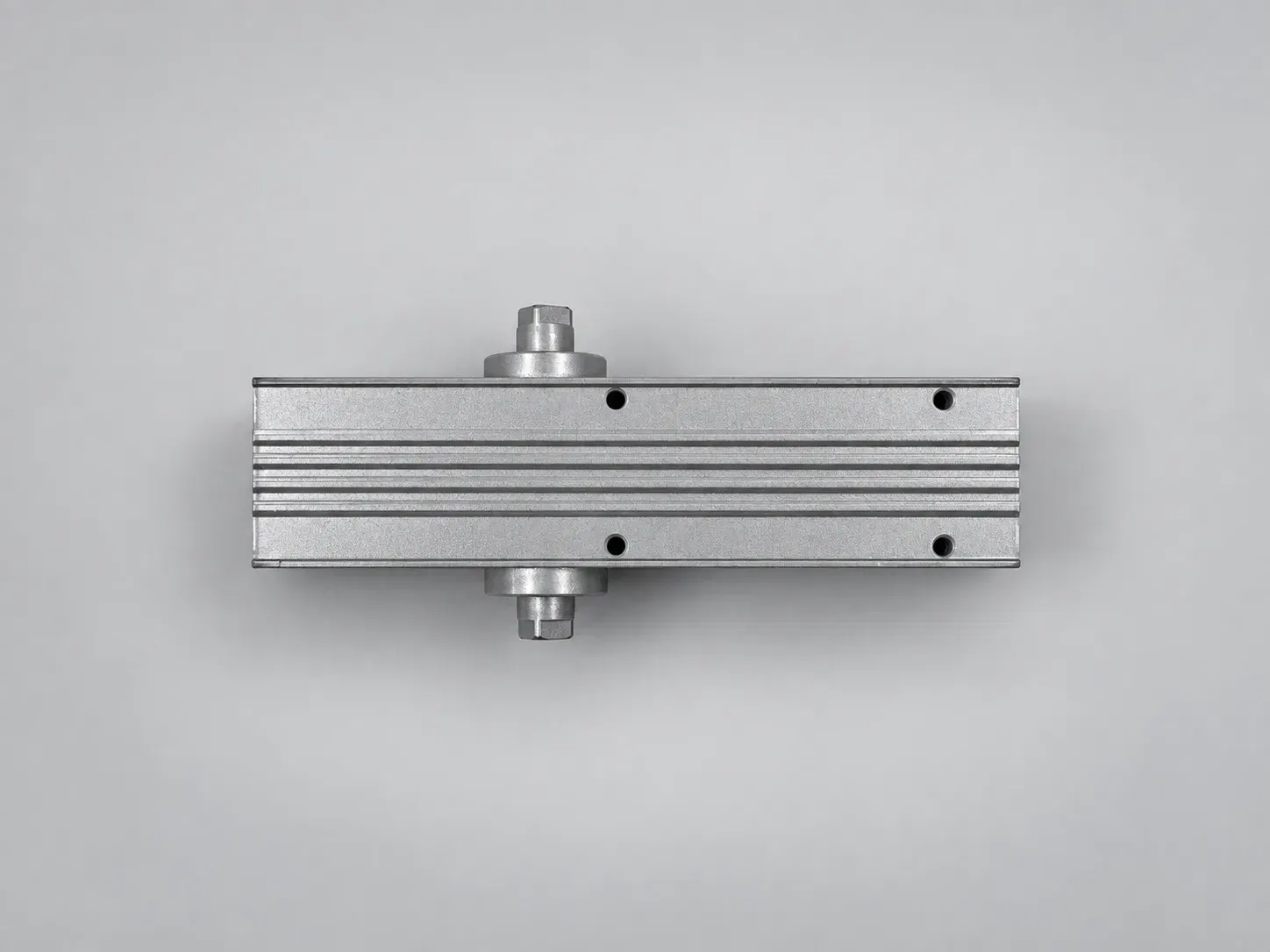

Extruded aluminium housings, precision machined

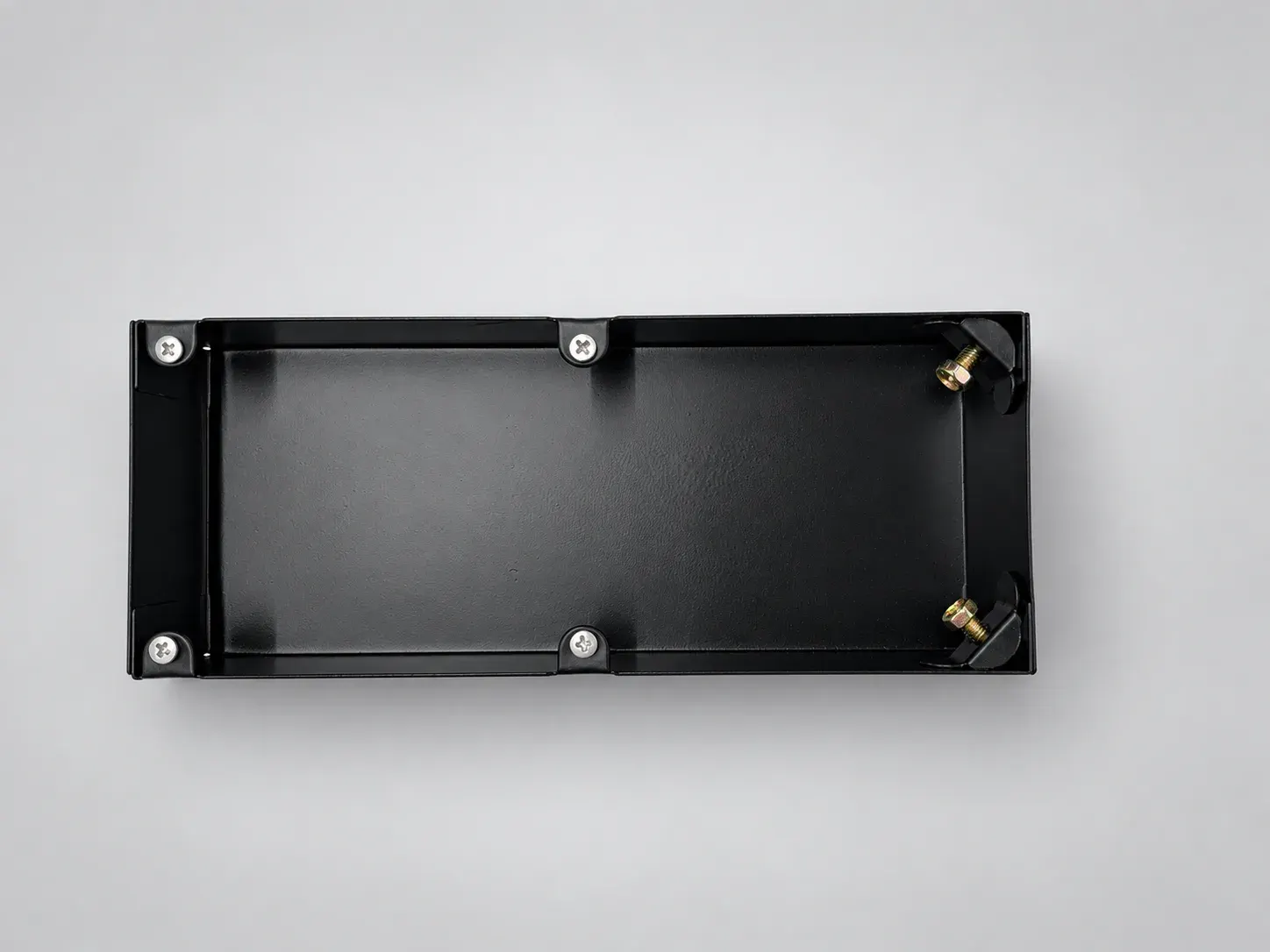

Door closer bodies are extruded aluminium alloy, machined and finished in-house. The FS 3000 floor spring uses an aluminium pressure die-cast housing and the FS 1000 a cast iron body.
In-house R&D and test lab
Design, prototyping and testing happen inside the plant, in the company's own R&D and test lab.
ISO 9001:2015 quality system
Manufacturing runs under a certified ISO 9001:2015 quality management system.
UL-audited facility
The manufacturing facility has been audited by UL.
ERP-managed production
Production is planned and recorded in an ERP, so project quantities are scheduled rather than improvised.
The range,
model by model.
All ten Sterling models with the door each one is rated for. Each card opens the model page: specification, drawings, marks and documents.
Surface-mounted door closer

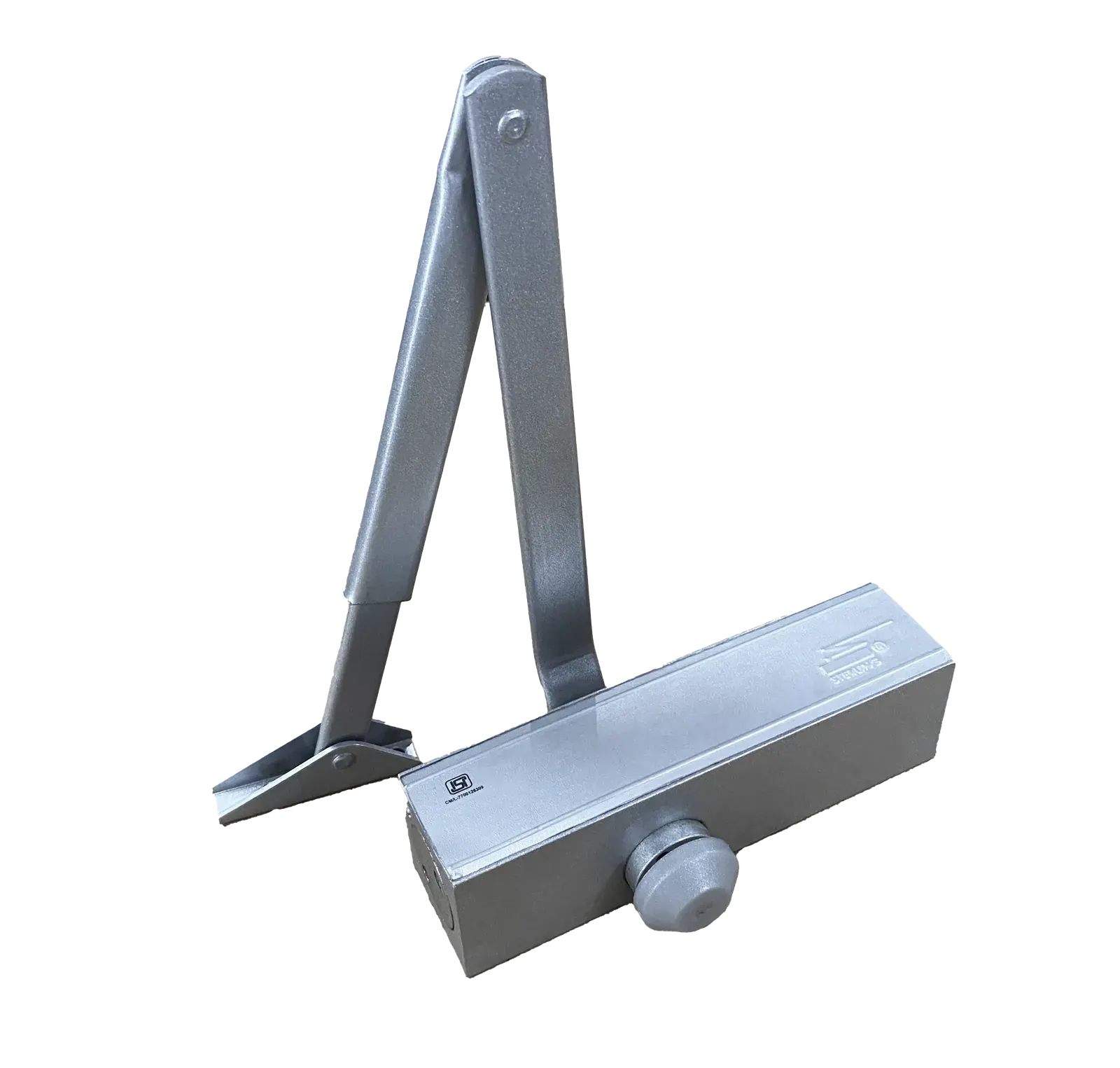

Sterling DC 1800 LA
Doors up to 60 kg and 950 mm wide, EN 2-3
Surface-mounted door closer
Sterling DC 1820
Doors up to 60 kg and 950 mm wide, EN 2-3
Surface-mounted door closer

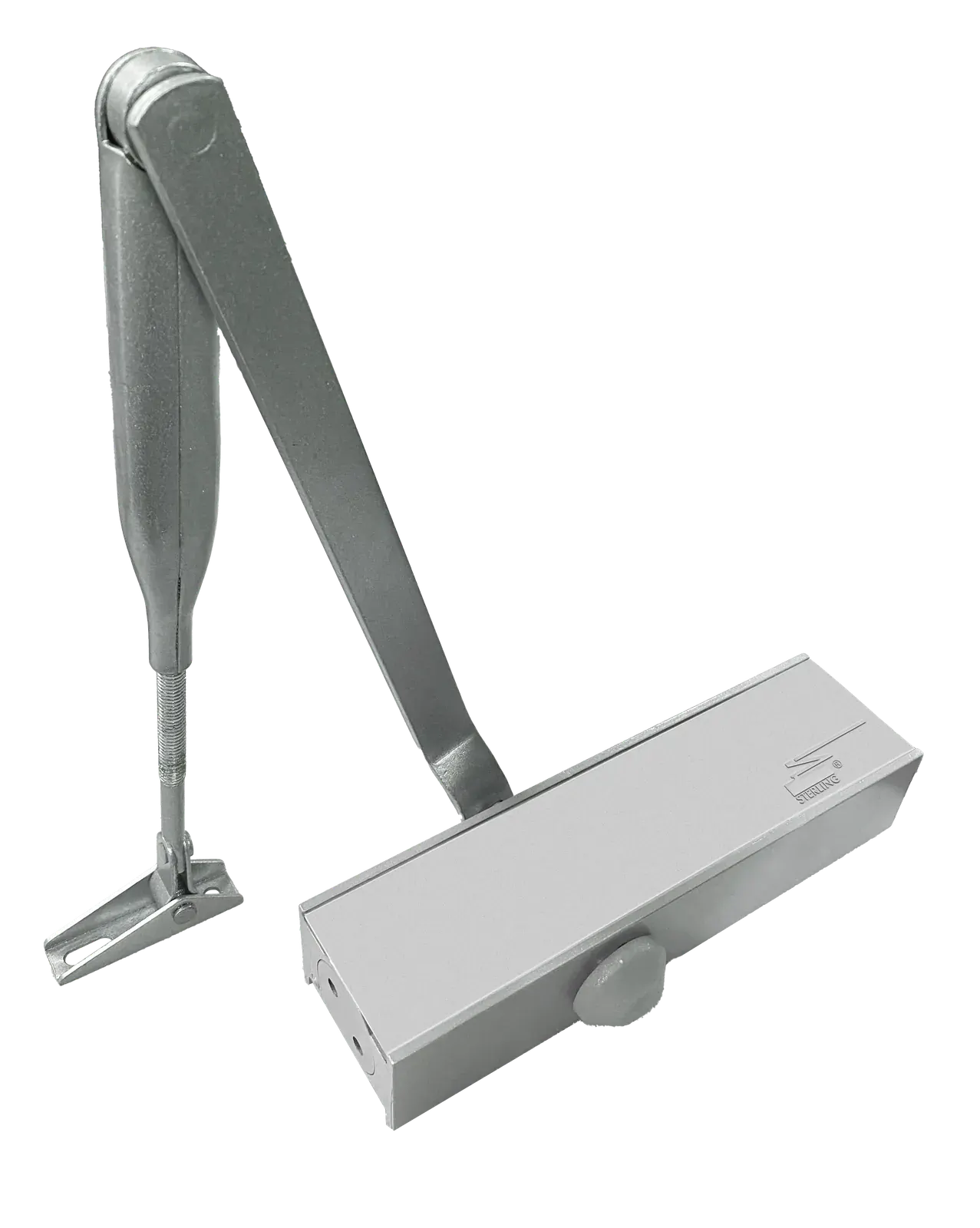

Sterling DC 2000
Doors up to 80 kg and 1100 mm wide, EN 3-4
Surface-mounted door closer

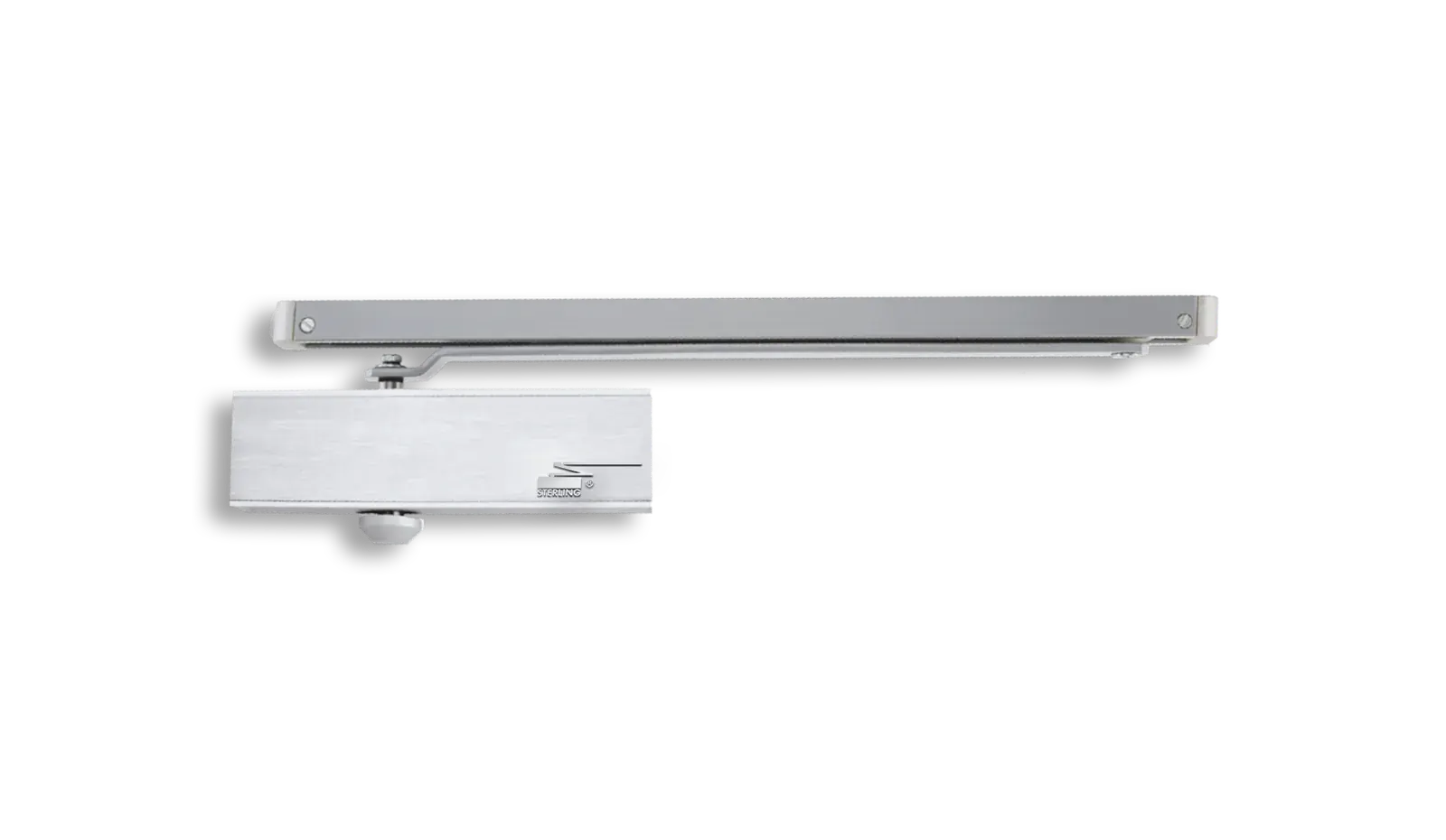

Sterling DC 2600
Doors up to 80 kg and 1100 mm wide, EN 3-4

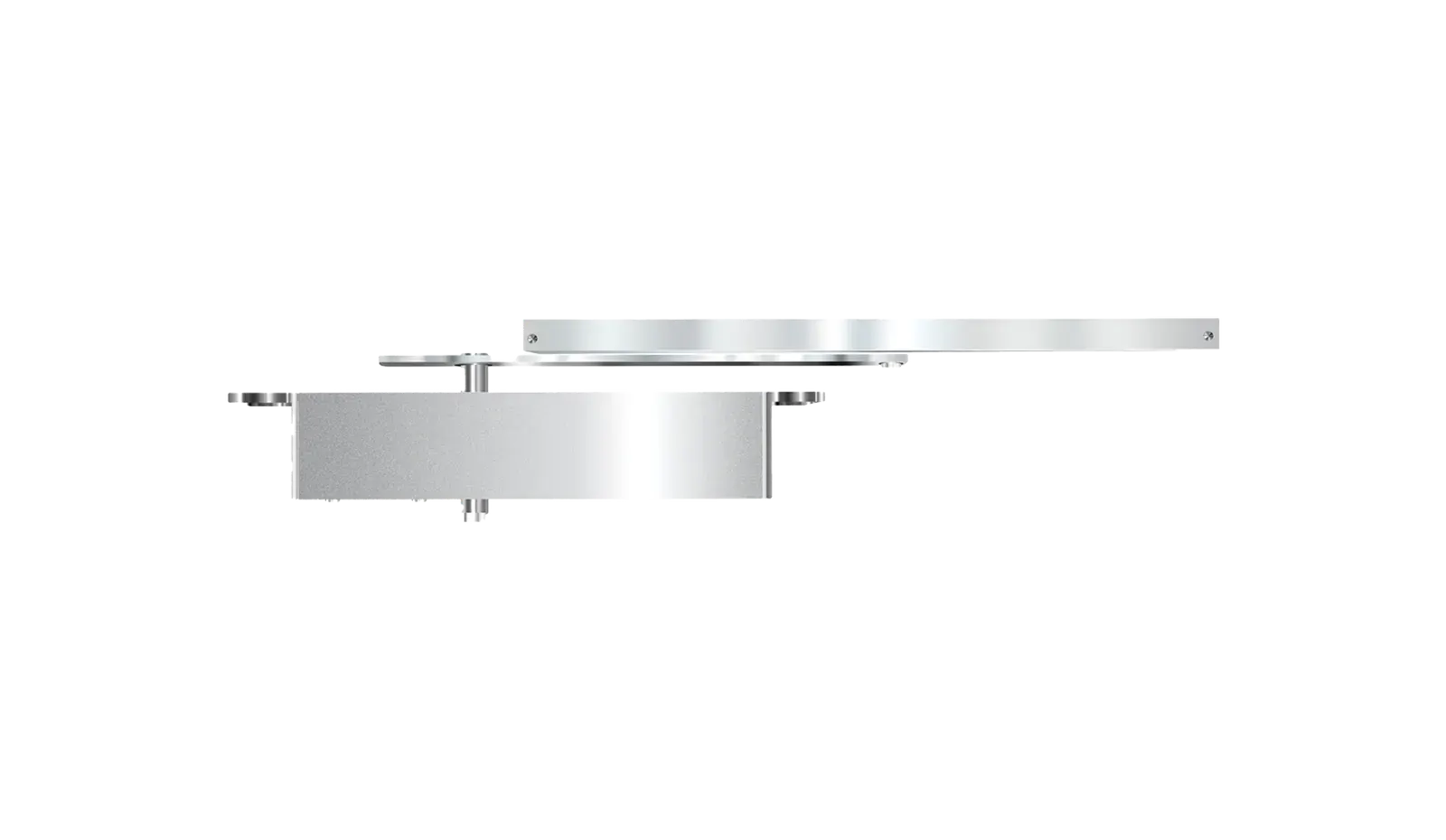

Concealed door closer
Sterling DC 2700
Doors up to 60 kg and 970 mm wide, EN 2-3
Concealed door closer
Sterling DC 2800
Doors up to 80 kg and 970 mm wide, EN 2-4
Surface-mounted door closer
Sterling DC 2900
Doors up to 100 kg and 1100 mm wide, EN 4-5
Floor spring

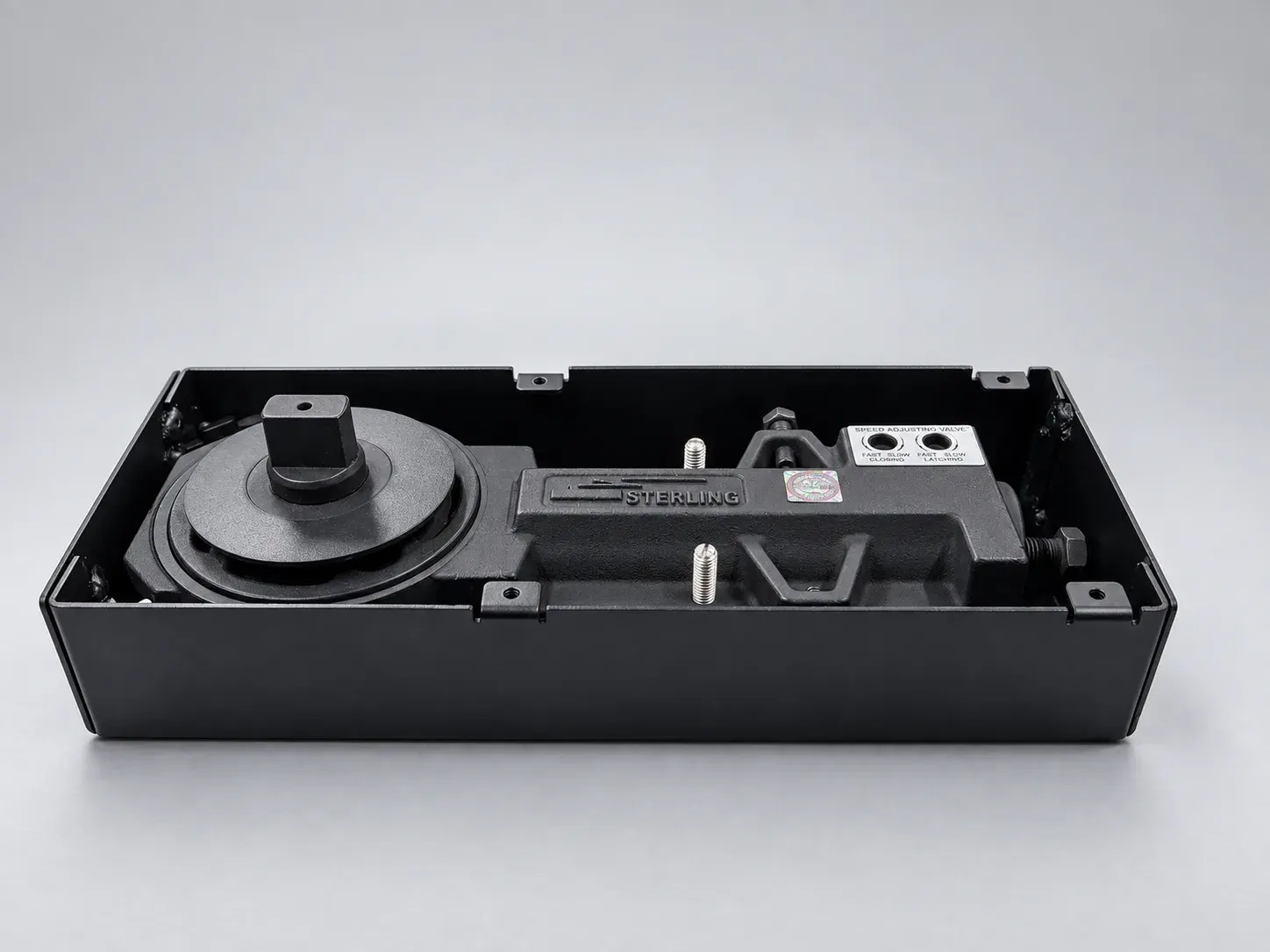

Sterling FS 1000
Doors of 60 to 80 kg, up to 1100 mm wide
Floor spring
Sterling FS 3000
Doors of 90 to 120 kg, up to 1100 mm wide
Ten models,
rated up to 120 kg.
Six surface-mounted closers, two concealed closers and two floor springs. Door closer housings are extruded aluminium alloy, precision machined, around a rack and pinion mechanism; painting and powder coating are done in-house.

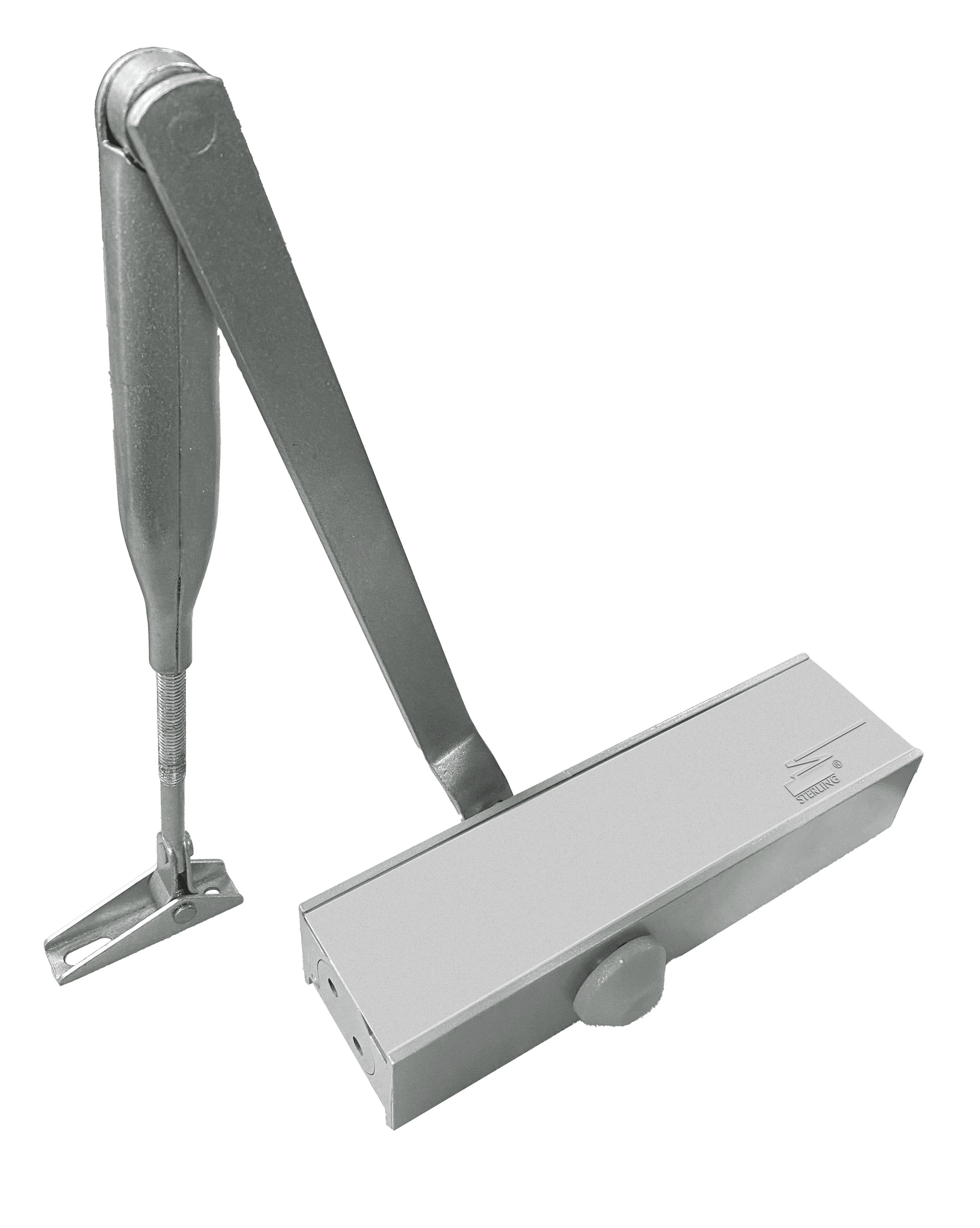

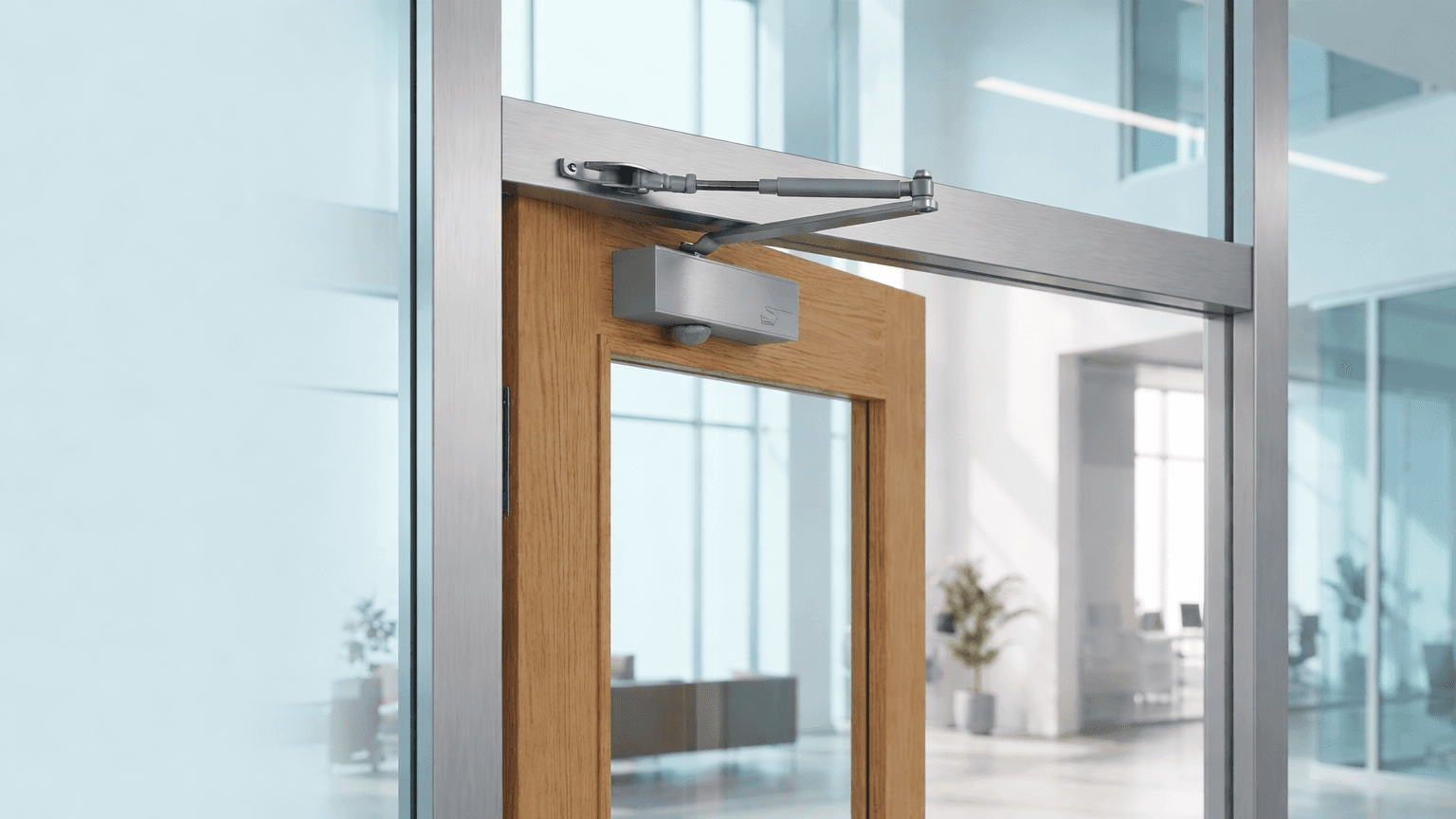

Surface-mounted door closers
Six models, EN 1-2 to EN 4-5
For wooden and aluminium doors up to 100 kg and 1100 mm wide. Two-speed control, closing and latching, and universal left and right hand mounting. Front control adjustment on DC 1820, DC 2000, DC 2600 and DC 2900. Hold-open pelmet arm on DC 1820 and DC 2600, and as a variant of the DC 1500 (DC-1520 HPA) and DC 2900 (DC-2920 HPA HD); the DC 2600 holds from 10 to 90 degrees.
Scroll the table sideways for body sizes, finishes and marks.
| Model | EN 1154 | Door, kg | Width, mm | Body L × W × H, mm | Finishes | Marks |
|---|---|---|---|---|---|---|
| DC 1500 | EN 1-2 | 45 | 900 | 190 × 39 × 40 | Silver, black, brown, gold, rose gold | ISI |
| DC 1800 LA | EN 2-3 | 60 | 950 | 162 × 40 × 45 | Silver, black, brown, gold, rose gold | ISI, CE |
| DC 1820 | EN 2-3 | 60 | 950 | 162 × 40 × 45 | Silver, black, brown, gold, rose gold | ISI, CE |
| DC 2000 | EN 3-4 | 80 | 1100 | 202 × 40 × 55 | Silver, black, brown, gold, rose gold | ISI, CE |
| DC 2600 | EN 3-4 | 80 | 1100 | 202 × 40 × 55 | Silver, black, brown, gold, rose gold | ISI, CE |
| DC 2900 | EN 4-5 | 100 | 1100 | 225 × 40 × 55 | Silver, black, brown, gold, rose gold | ISI, CE |
ISI marked to IS 3564:1995 under BIS licence CM/L 7700126309: DC 1500, DC 1800 LA, DC 1820, DC 2000, DC 2600, DC 2700, DC 2800 and DC 2900. CE marked: DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900.
Concealed door closers
Two models, for wooden doors
DC 2700 for wooden doors from 32 mm thick, DC 2800 from 38 mm, both for doors up to 970 mm wide. Silver, black, brown, gold, rose gold finish.
Scroll the table sideways for door thickness and body sizes.
Door thickness sets the choice: the DC 2800 needs a wooden leaf at least 38 mm thick.

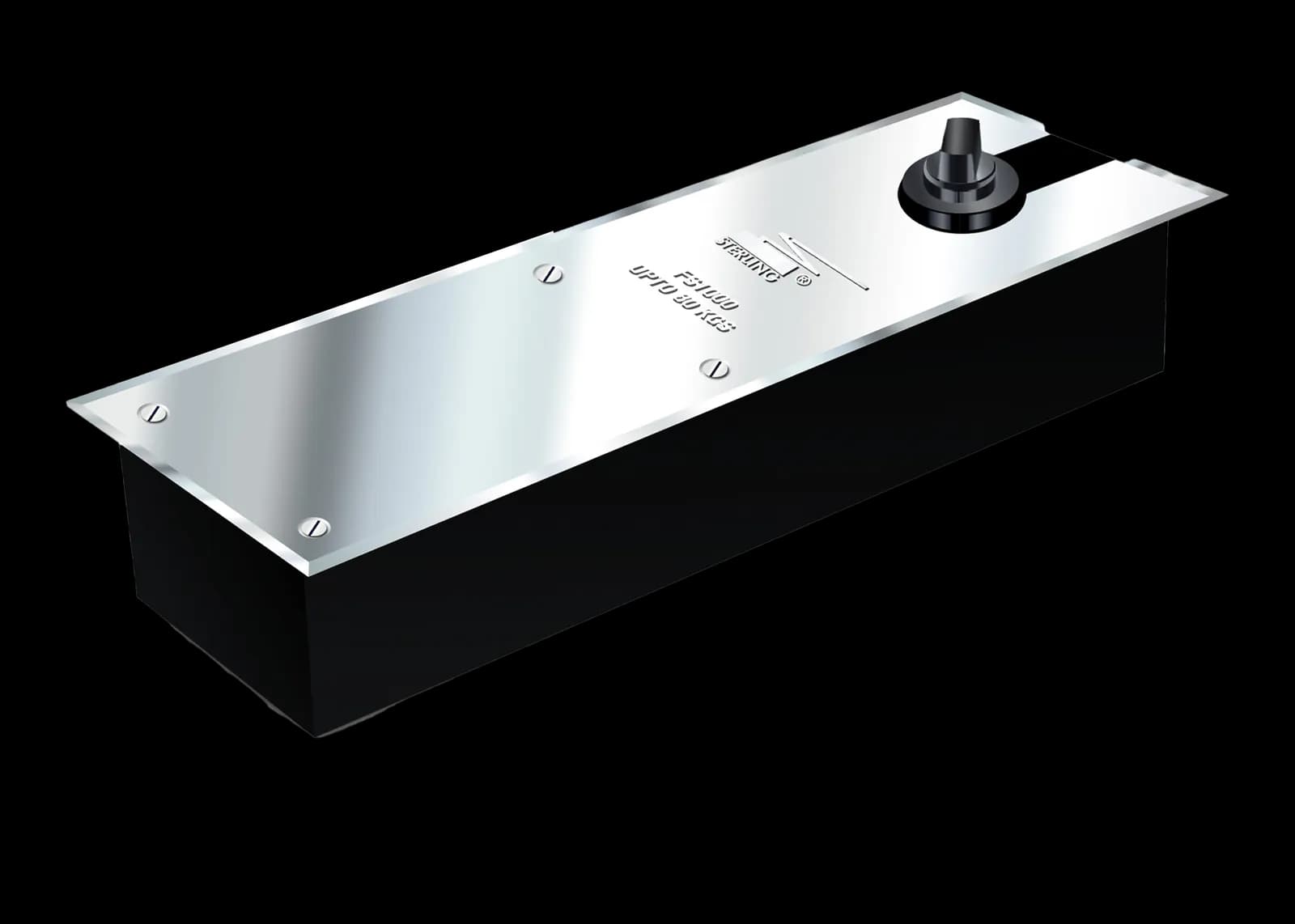

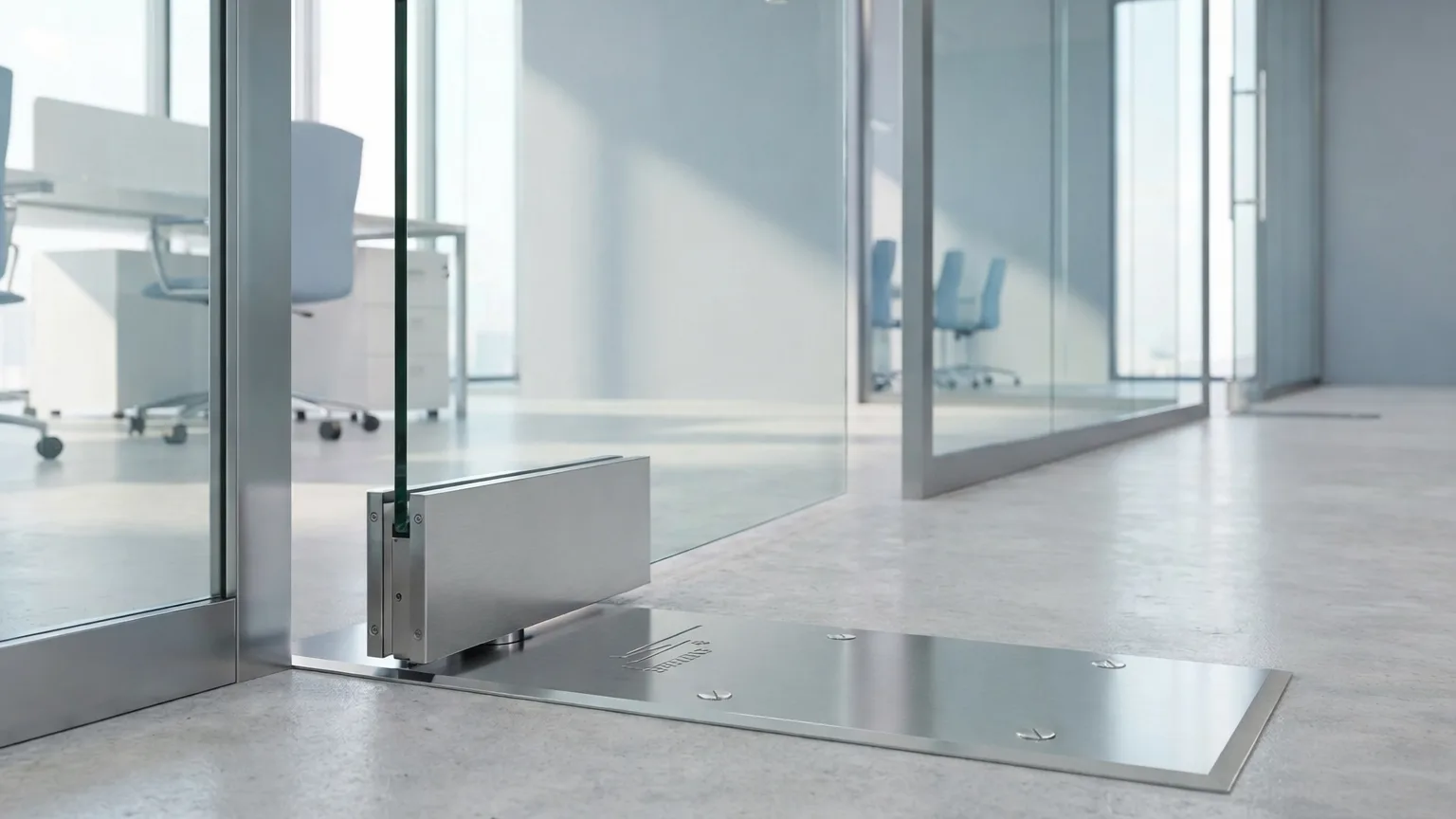

Floor springs
Two models, 60 to 120 kg
Built-in hold open at 90 degrees, two-speed control and a stainless steel matt top plate, for leaves up to 1100 mm wide. The FS 3000 has a cam action body with load adjustment from 90 to 120 kg, in an aluminium pressure die-cast housing.
BIS certified under licence CM/L 7700249814. No EN 1154 size is stated for floor springs; they are rated by door weight and width.
Find the
right closer.
EN 1154 sizes a closer by door weight and by door width. Each gives a size; the larger one governs. A model is listed when its rated door weight and width both cover your door.
For a door of 75 kg and 1050 mm
EN 4
- 75 kg is over 60 and up to 80 kg: EN 4 by weight.
- 1050 mm is over 950 and up to 1100 mm: EN 4 by width.
- Both give EN 4, so EN 4 governs. Where they differ, the larger size governs.
Four models rated for this door
Surface mounted, EN 3-4, rated 80 kg and 1100 mm. Front control adjustment.
Margin: 5 kg, 50 mm

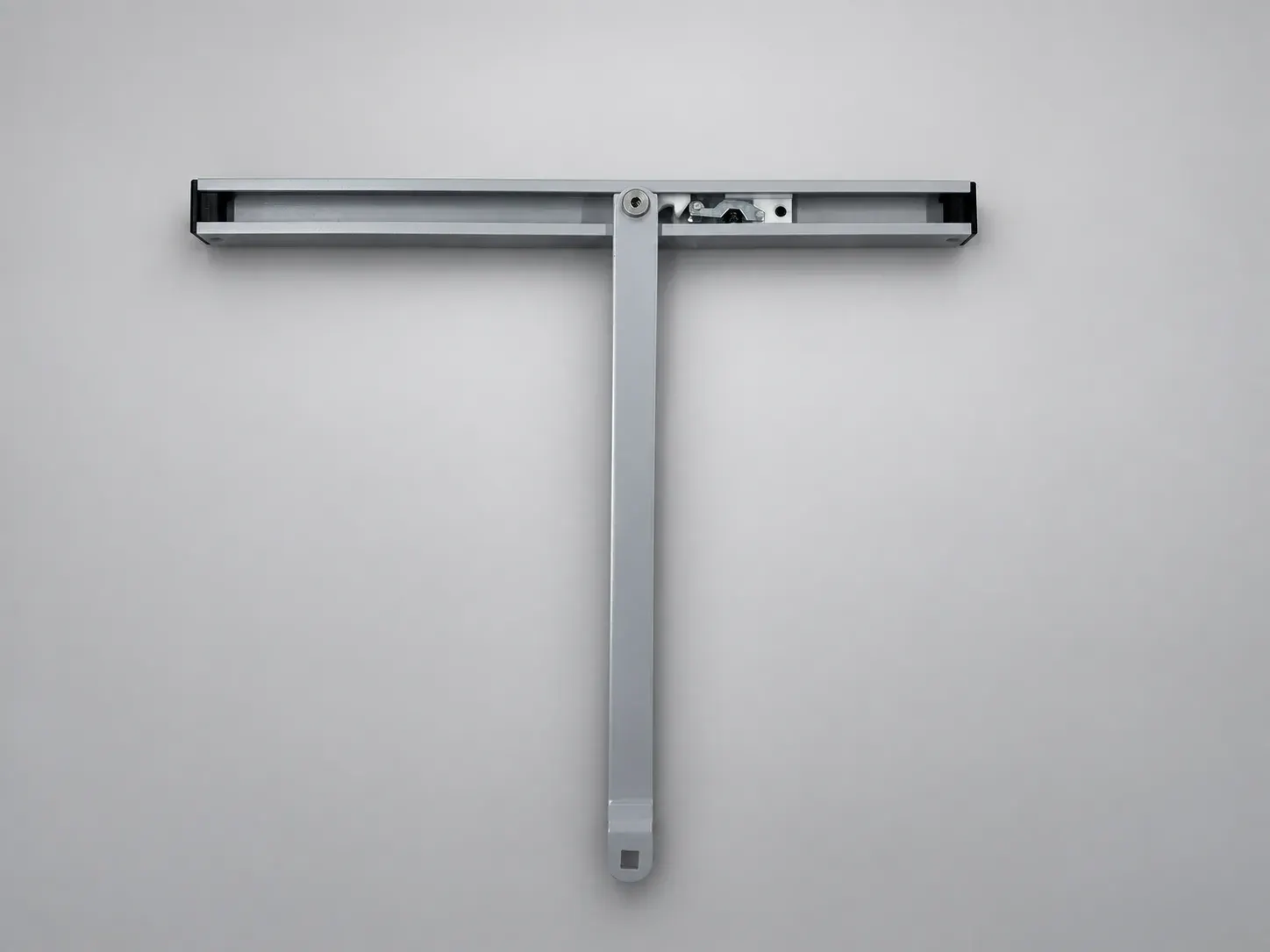

Surface mounted, EN 3-4, rated 80 kg and 1100 mm. Front control adjustment. Holds open from 10 to 90 degrees.
Margin: 5 kg, 50 mm
Surface mounted, EN 4-5, rated 100 kg and 1100 mm. Front control adjustment.
Margin: 25 kg, 50 mm
Not listed, and why
- Rated below this door's weight: DC 1500 (45 kg), DC 1800 LA, DC 1820 and DC 2700 (60 kg).
- Rated below this door's width: DC 2800 (970 mm).
- Below the floor spring's rated range: FS 3000 (90 to 120 kg).
Listed with headroom first, nearest limit first; models rated exactly at your door follow. Floor springs carry no stated EN 1154 size and are matched on their rated door weight and width.
Every model,
side by side.
Mounting, EN 1154 size, door limits, hold-open, front control adjustment, the cycle test figure and the marks of all ten models in one table.
Scroll the table sideways for hold-open, adjustment, cycle test and marks.
| Model | Mounting | EN 1154 | Door, kg | Width, mm | Hold-open | Front adjustment | Cycle test, cycles | Marks |
|---|---|---|---|---|---|---|---|---|
| DC 1500 | Surface | EN 1-2 | 45 | 900 | DC-1520 HPA variant | Not stated | Not stated | ISI |
| DC 1800 LA | Surface | EN 2-3 | 60 | 950 | Not stated | Optional | 4,00,000 | ISI, CE |
| DC 1820 | Surface | EN 2-3 | 60 | 950 | Hold-open pelmet arm | Yes | 4,00,000 | ISI, CE |
| DC 2000 | Surface | EN 3-4 | 80 | 1100 | Not stated | Yes | 5,00,000 | ISI, CE |
| DC 2600 | Surface | EN 3-4 | 80 | 1100 | 10 to 90 degrees | Yes | 5,00,000 | ISI, CE |
| DC 2700 | Concealed | EN 2-3 | 60 | 970 | DC-2720 HPA variant | Not stated | 3,00,000 | ISI |
| DC 2800 | Concealed | EN 2-4 | 80 | 970 | DC-2820 HPA variant | Not stated | 4,00,000 | ISI |
| DC 2900 | Surface | EN 4-5 | 100 | 1100 | DC-2920 HPA HD variant | Yes | 5,00,000 | ISI, CE |
| FS 1000 | Floor spring | Not stated | 60 to 80 | 1100 | At 90 degrees | Not stated | 5,00,000 | BIS |
| FS 3000 | Floor spring | Not stated | 90 to 120 | 1100 | At 90 degrees | Not stated | 5,00,000 | BIS |
ISI marked to IS 3564:1995 under BIS licence CM/L 7700126309: DC 1500, DC 1800 LA, DC 1820, DC 2000, DC 2600, DC 2700, DC 2800 and DC 2900. CE marked: DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900. BIS certified under licence CM/L 7700249814: FS 1000 and FS 3000. No EN 1154 size is stated for floor springs; they are rated by door weight and width. The cycle figure is the one the brochure prints for each model; “Not stated” means no source gives one.
Each feature,
on named models.
Each card names the models it applies to. Where a figure is company-wide, the card says selected models.

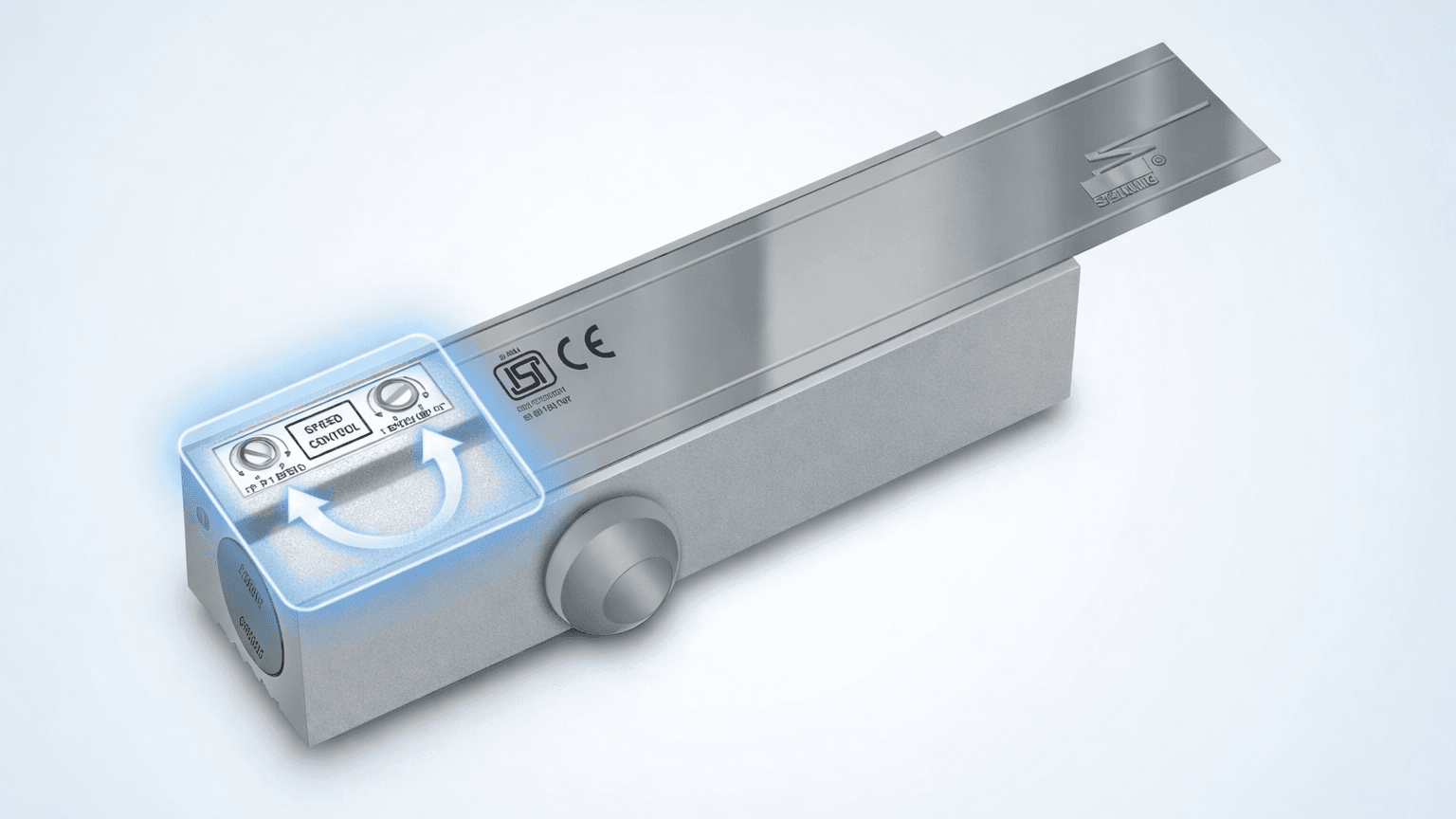

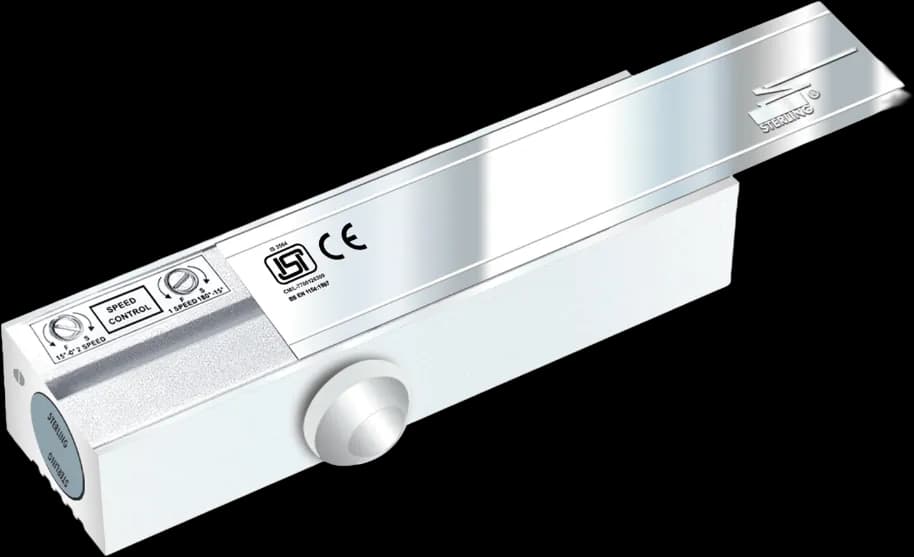

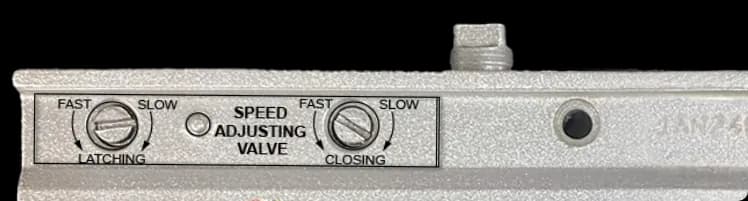

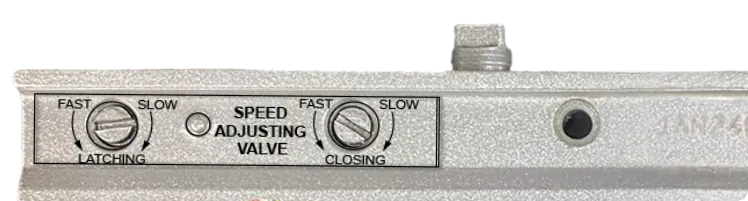

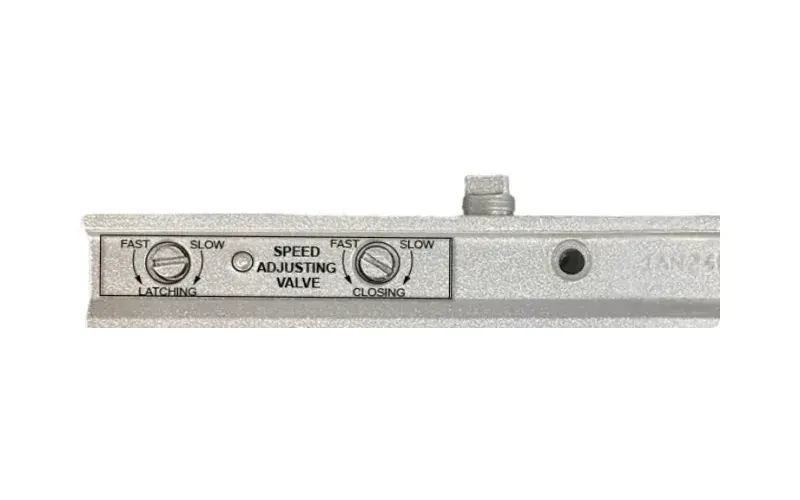

Front control adjustment

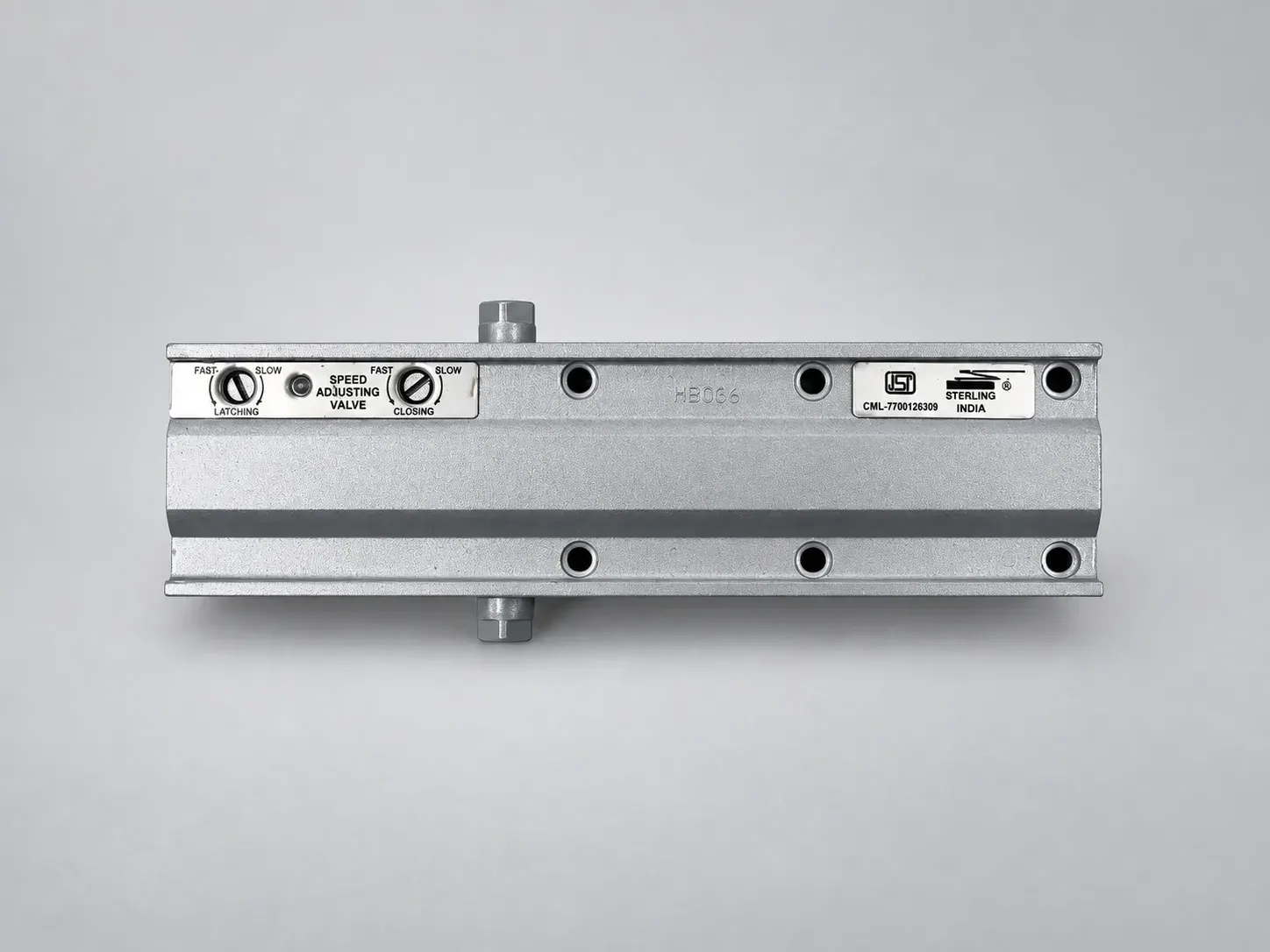

The closing and latching speeds adjust from the front face of the closer on the DC 1820, DC 2000, DC 2600 and DC 2900.
BIS certified floor springs
The FS 1000 and FS 3000 are BIS certified under licence CM/L 7700249814.

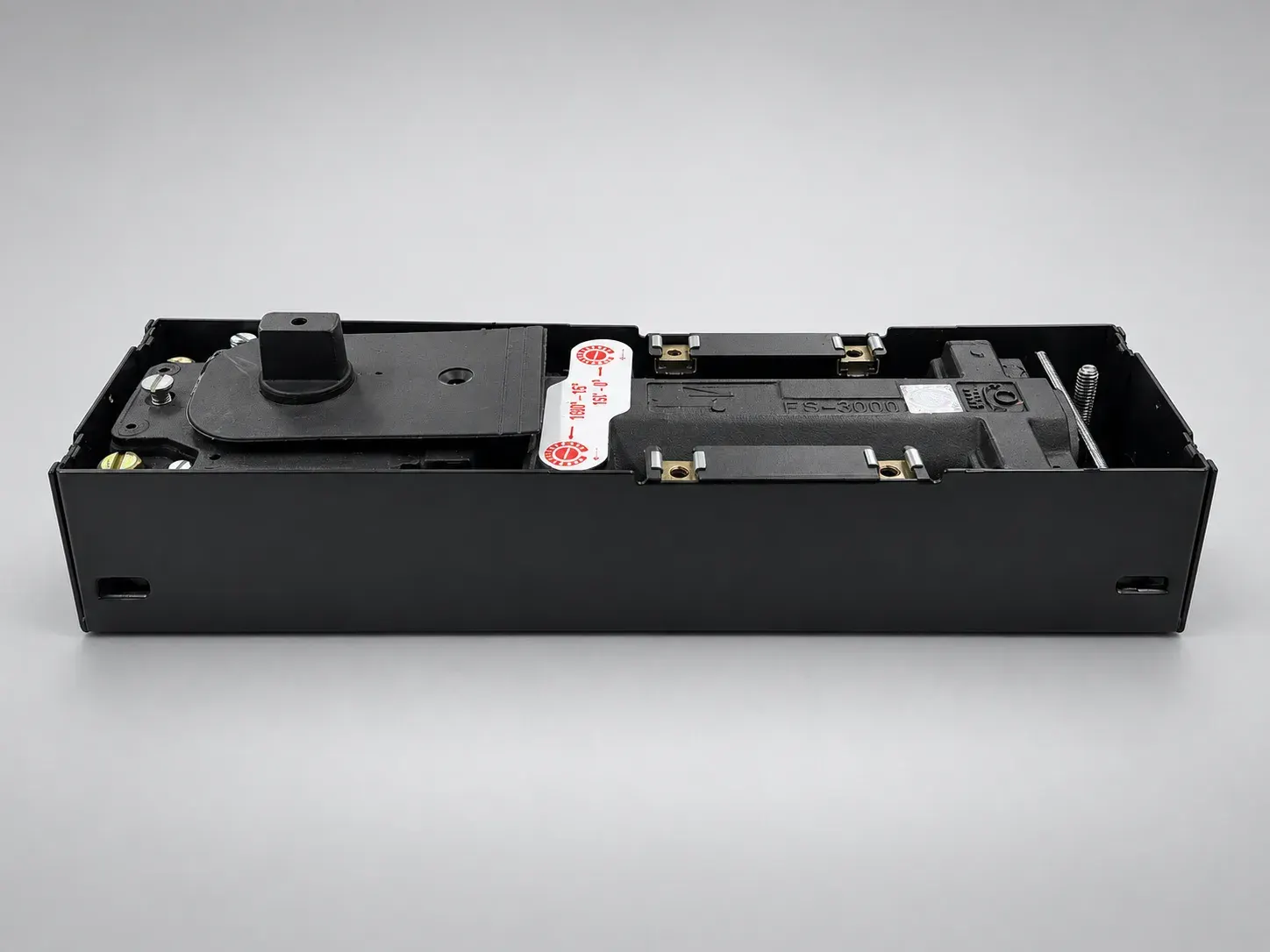

Cam action floor spring

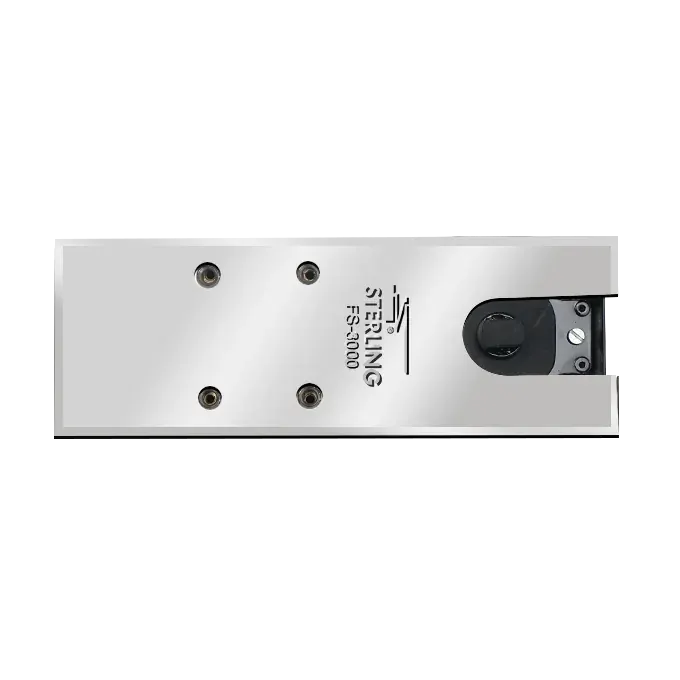

The FS 3000 has a cam action body with load adjustment from 90 to 120 kg, in an aluminium pressure die-cast housing.
5,00,000
cycles, selected models
Cycle tested in a government-approved lab
Selected models are tested for up to 5,00,000 opening and closing cycles in a government-approved lab. The figure for each tested model is printed on its product page.
Door closer finishes
- Silver
- Black
- Brown
- Gold
- Rose gold
Painting and powder coating in-house
PU painting and powder coating run under the same roof as machining, which keeps finish quality and colour matching under our own control.
Licence numbers,
next to the claim.
Each line names the standard, the licence or the test, and the models it applies to.
| Claim | Evidence | Applies to |
|---|---|---|
| ISI mark, door closers | IS 3564:1995, BIS licence CM/L 7700126309 | DC 1500, DC 1800 LA, DC 1820, DC 2000, DC 2600, DC 2700, DC 2800 and DC 2900 |
| BIS certification, floor springs | BIS licence CM/L 7700249814 | FS 1000 and FS 3000 |
| Quality management | ISO 9001:2015. Certified quality management system covering the company's manufacturing. | MM Efficient Gadget LLP |
| Cycle testing | Tested up to 5,00,000 cycles in a government-approved lab | Selected models |
| CE marking | CE marked door closers, listed per model. | DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900 |
| Facility | UL-audited manufacturing facility. In-house R&D and test lab. Painting and powder coating in-house. | MM Efficient Gadget LLP |
| Origin | Made in India. Door closers made in India since 1989. | All products |
Specify it,
or stock it.
Architects and project teams specify door by door; dealers stock the range for their own buyers.
Architects and project teams
Door limits and body sizes for all ten models, EN 1154 sizes for the eight door closers, the licence number beside each certified model, and a project quote worked out from your door schedule.
Dealers and distributors
Stock the Sterling range: six surface-mounted closers, two concealed closers and two floor springs, supplied by MM Efficient Gadget LLP. Dealer network across India.
Guides for
specifiers.
Short pages written from the standard and the specification, for architects, contractors and project buyers.
Covers EN 1 to EN 7
What size door closer do I need? EN sizes explained
Every door closer is sized against two numbers: how wide the door leaf is and how much it weighs. The EN power size scale puts both on one axis.
Covers 32 and 38 mm
Surface-mounted vs concealed door closers
The mechanism is much the same. What changes is where it lives, and that affects installation, servicing and what the finished door looks like.
Covers IS 3564:1995
ISI marking and IS 3564 explained for door closers
ISI, BIS, IS 3564, ISO 9001 and cycle testing get used almost interchangeably in product listings. They certify quite different things.
Questions buyers
ask first.
Something else? Contact the Sterling sales desk.
Where are Sterling door closers and floor springs made?
At MM Efficient Gadget LLP's own ISO 9001:2015 certified, UL-audited facility in Vasai-Virar, Maharashtra. The business has made door control hardware since 1989.
Are Sterling door closers ISI marked?
Yes, all eight. The DC 1500, DC 1800 LA, DC 1820, DC 2000, DC 2600, DC 2700, DC 2800 and DC 2900 door closers are ISI marked to IS 3564:1995 under BIS licence CM/L No. 7700126309. Floor springs are certified separately: the FS 1000 and FS 3000 are BIS certified under licence CM/L No. 7700249814. Each product page states the marking and the cycle test figure that apply to that model.
Which Sterling model do I need for my door?
Size by door weight and leaf width. Up to 45 kg: DC 1500 (EN 1-2). Up to 60 kg: DC 1800 LA or DC 1820, or the concealed DC 2700 (EN 2-3). Up to 80 kg: DC 2000 or DC 2600 (EN 3-4), or the concealed DC 2800 (EN 2-4). Up to 100 kg: DC 2900 (EN 4-5). For glass or heavy doors, the FS 1000 floor spring covers 60 to 80 kg and the FS 3000 covers 90 to 120 kg.
Do you quote for projects and bulk orders?
Yes. Sterling does not publish list prices, because the price depends on the model, finish and quantity. Send a door schedule with leaf widths, door weights, mounting type and quantities, and we will size and quote every door against it.
How do I become a Sterling dealer?
Apply on the dealers page with your firm name, city and contact details, or call or WhatsApp +91 83693 92225. Our team will get back to you to discuss the range and supply.
How do I adjust a door closer's closing speed?
Door closers have two small adjustment valves, usually marked "Close" and "Latch". Turn them slightly, about 1/8 turn at a time, with a screwdriver: clockwise to slow the door down, anticlockwise to speed it up. Closing speed controls the swing from open to about 10 to 15 cm before the frame; latching speed controls the final click as it shuts.
Send a door
schedule.
Door references, quantities, door weights and widths, hold-open needs and finishes. Sterling quotes per project; there are no list prices online.
